Gneiss tutorial

This community tutorial has been migrated to our official documentation. Please refer to that tutorial instead.

Click to see original community tutorial

In this tutorial you will learn how to perform differential abundance analysis using balances in gneiss. The main problem that we will focus on is how to identify differentially abundant taxa in a compositionally coherent way.

Compositionality refers to the issue of dealing with proportions. Since the sequencing depth is not typically biology relevant, the microbial abundances are best interpreted as proportions. Because of this, it becomes challenging to infer exactly which microbes are changing -- since proportions add to one, the change of a single microbe will also change the proportions of the remaining microbes.

Consider the following example:

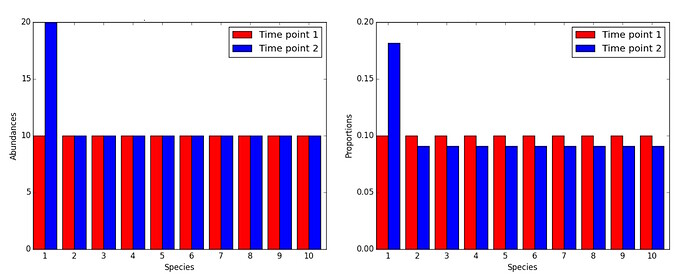

On the left, we have the true abundances of ten species, and the first species doubles between Time point 1 and Time point 2. When we normalize these to proportions, it appears as if all of the species have changed between the two time points. Looking at proportions alone, we would never realize this problem, and we actually cannot exactly determine which species are changing based on proportions alone.

While we cannot exactly solve the problem of identifying differentially abundant species, we can relax this problem and ask which partitions of microbes are changing. In the case above, if we compute the ratio between the first species and the second species, that ratio will be 1:1 at Time point 1, and 2:1 at Time point 2 for both the original abundances and the proportions. This is the type of question that balances try to solve.
Rather than focusing on individual taxa, we can focus on the log ratios, since the log ratios are consist between the original abundances and the observed proportions of the species are observed. The concept of calculating balances for multiple species can be extended to trees as shown in the following example.

On the right, we define a tree, where each of the tips corresponds to a taxon and their corresponding proportions. The internal nodes define the log ratio between the taxa underneath. On the left, we have the same tree, but one of the taxa abundances changes. As we have observed before, the proportions of all of the taxa will change, but looking at the balances, only the balances containing the purple taxa will change. In this case, balance b_3 won't change, since it only considers the ratio between the red and green taxa. By looking at balances instead proportions, we can control for the variance by restricting observations to only focus on the taxa within the balance.

The outstanding question here is, how do we construct a tree to control for the variation, and identify interesting differentially abundant partitions of taxa? In gneiss, there are two main ways that this can be done

  1. Gradient clustering. For example, if we want to evaluate if pH is a driving factor, we can group together according to the pH that they are observed in, and observe whether the ratios of low-pH organisms to high-pH organisms change as the pH changes. This is available in the gradient-clustering command.
  2. Correlation clustering. If we don't have relevant prior information about how to cluster together organisms, we can group together organisms based on how often they co-occur with each other.

Once we have a tree, we can calculate balances using the following equation

b_i = \sqrt{\frac{rs}{r+s}} \log \frac{g(x_r)}{g(x_s)}

where i represents the i^{th} internal node in the tree, g(x) represents the geometric mean within set x, and x_r represents the set of taxa abundances in the numerator of the balance, x_s represents the set of taxa abundances in the denominator of the balance, and r and s represents the number of taxa within x_r and x_s respectively.

After the balances are calculated, standard statistical procedures such as ANOVA and linear regression can be performed. We will see how we can run these procedures using the Chronic Fatigue Syndrome dataset.

Building linear models using balances

In the Chronic Fatigue Syndrome dataset published in Giloteaux et al (2016), there are 87 individuals with 48 diseased patients and 39 healthy controls. The data used in this tutorial were sequenced on an Illumina MiSeq using the Earth Microbiome Project hypervariable region 4 (V4) 16S rRNA sequencing protocol.

Before beginning this tutorial, create a new directory and change to that directory.

mkdir qiime2-chronic-fatigue-syndrome-tutorial
cd qiime2-chronic-fatigue-syndrome-tutorial

The datasets required for this tutorial can be found below

table.qza (35.1 KB)
map.txt (10.3 KB)
taxa.qza (93.9 KB)

The differential abundance techniques that we will be running will utilize log ratio transforms. Since it is not possible to take the logarithm of zero, we will be adding in a pseudocount to all of the counts via the add-pseudocount method. In this way, we can apply logarithms on this transformed table.

qiime gneiss add-pseudocount \
    --i-table table.qza \
    --p-pseudocount 1 \
    --o-composition-table composition.qza

composition.qza (40.0 KB)

In the next step, we will define partitions of microbes for which we want to construct balances. If we have additional information about the types of habitats that microbes prefer to live in, such as pH, we can employ gradient-clustering to group together microbes based on their preferred habitat. Since we don't have that sort of information here, we will employ unsupervised clustering via Ward's hierarchical clustering to obtain Principal Balances. In essence, this will define the partitions of microbes that commonly co-occur with each other using Ward hierarchical clustering, which is defined by the following metric.

d(x, y) = V [ \ln \frac{x}{y} ]

Where x and y represent the proportions of two microbes across all of the samples. If two microbes are highly correlated, then this quantity will shrink close to zero. Ward hierarchical cluster will then use this distance metric to iteratively cluster together groups of microbes that are correlated with each other. In the end, the tree that we obtain will highlight the high level structure and identify the blocks within in the data.

qiime gneiss correlation-clustering \
    --i-table composition.qza \
    --o-clustering hierarchy.qza

hierarchy.qza (12.9 KB)

Now that we have a tree that defines our partitions, we can perform the ilr transform. Note that the ilr transform just computes the log ratios between groups; in this case we will be computing log ratios between groups of anti-correlated features.

qiime gneiss ilr-transform \
    --i-table composition.qza \
    --i-tree hierarchy.qza \
    --o-balances balances.qza

balances.qza (180.1 KB)

Once we have obtained a means to partition the features, we can now run linear regression on the balances. In this module, the abundances will be converted to principal balances using the partition scheme that we defined earlier. The linear regression that we will be running is called a multivariate response linear regression, which boils down to performing a linear regression on each balance separately.

We can use this to attempt to predict the microbial abundances based on environmental variables. Running these models has multiple advantages over standard univariate regression, as it avoids many of the issues associated with overfitting, and can gain perspective about community-wide perturbations based on environmental parameters.

Since the microbial abundances can be mapped directly to balances, we can perform this multivariate response directly on the balances. The model that we will be building is represented as follows

\vec{y} = \vec{\beta_0} + \vec{\beta_{Subject}}\vec{X_{subject}} + \vec{\beta_{sex}}\vec{X_{sex}} + \vec{\beta_{age}}\vec{X_{Age}} + \vec{\beta_{sCD14ugml}}\vec{X_{sCD14ugml}} + \vec{\beta_{LBPugml}}\vec{X_{LBPugml}}

Where \vec{y} represents the matrix of balances to be predicted, \vec{\beta_i} represents a vector of coefficients for covariate i and \vec{X_i} represents the measures for covariate i.

Remember that ANOVA is a special case of linear regression - every problem that can be solved by ANOVA can be reformulated as a linear regression. See this post for most details. So we can still answer the same sort of differential abundance questions using this technique, but we can start asking more precise questions, controlling for different potential confounding variables or even interaction effects.

qiime gneiss ols-regression \
    --p-formula "Subject+Sex+Age+BMI+sCD14ugml+LBPugml+LPSpgml" \
    --i-table balances.qza \
    --i-tree hierarchy.qza \
    --m-metadata-file map.txt \
    --o-visualization regression_summary.qzv

regression_summary.qzv (587.0 KB)

Now we have a summary of the regression model. Specifically we want to see which covariates impact the model the most, which balances are meaningful, and how much potential overfitting is going on.

There are a few things to note in the regression summary. There is an R^2 in the summary, which gives information about the variance in the community is explained by the regression model. From what we can see, the regression can explain about 10% of the community. This is typical for what we see in human gut microbes, since there is a very high amount of confounding variation due to genetics, diet, environment, etc.

To evaluate the explanatory model of a single covariate, a leave-one-variable-out approach is used. One variable is left out, and the change in R^2 is calculated. The larger the change is, the stronger the effect of the covariate is. In this case, Subject is the largest explanatory factor, explaining 2% of the variation.

To make sure that we aren't overfitting, 10-fold cross validation is performed. This will split the data into 10 partitions, build the model on 9 of the those partitions and use the remaining partition to measure the prediction accuracy. This process is repeat 10 times, once for each round of cross-validation. The within model error (mse), R^2 and the prediction accuracy (pred_mse) are reported for each round of cross validation. Here, the prediction accuracy is less than the within model error, suggesting that over fitting is not happening.

Next, we have a heatmap visualizing all of the coefficient pvalues for all of the balances. The columns of the heatmap represent balances, and the rows of the heatmap represent covariates. The heatmap is colored by the negative log of the pvalue, highlighting potentially significant pvalues. A hover tool is enabled to allow for specific coefficient values and their corresponding pvalues to be obtained, and zooming is enabled to allow for navigation of interesting covariates and balances.

Next are the prediction and residual plots. Here, only the top two balances are plotted, and the prediction residuals from the model are projected onto these two balances. From these plots we can see that the predicted points lie within the same region as the original communities. However, we can see that the residuals have roughly the same variance as the predictions. This is a little unsettling - but note that we can only explain 10% of the community variance, so these sorts of calculations aren't completely unexpected.

The branch lengths in the visualized tree are also scaled by the explained sum of squares in the models. The longest branch lengths correspond to the most informative balances. This can allow us to get a high-level overview of the most important balances in the model. From this plot and the above heatmap, we can see that balance y0 is important. These balances not only have very small pvalues (with pvalue<0.05) for differentiating subjects, but they also have the largest branch lengths in the tree diagram. This suggests that these two partitions of microbes could differentiate the CFS patients from the controls.

We can visualize these balances on a heatmap to see which groups of OTUs they represent. By default, the values within the feature table are log-scaled, with the sample means centered around zero.

qiime gneiss dendrogram-heatmap \
    --i-table composition.qza \
    --i-tree hierarchy.qza \
    --m-metadata-file map.txt \
    --m-metadata-category Subject \
    --p-color-map seismic \
    --o-visualization heatmap.qzv

heatmap.qzv (116.2 KB)

As noted in the legend, the numerators for each balance are highlighted in light red, while the denominators are highlighted in dark red. From here, we can see that the denominator of y0 has few OTUs compared to the numerator of y0. These taxa in the denominator could be interesting, so let's investigate the taxonomies making up this balance with balance_taxonomy

Specifically we'll plot a boxplot and identify taxa that could be explaining the differences between the control and patient groups.

qiime gneiss balance-taxonomy \
    --i-balances balances.qza \
    --i-tree hierarchy.qza \
    --i-taxonomy taxa.qza \
    --p-taxa-level 2 \
    --p-balance-name 'y0' \
    --m-metadata-file map.txt \
    --m-metadata-category Subject \
    --o-visualization y0_taxa_summary.qzv

y0_taxa_summary.qzv (68.4 KB)

In this particular case, the log ratio is lower in the patient group compared to the control group. In essence, this means that the taxa in the y0_{numerator} on average are more abundant than the taxa in y0_{denominator} in the healthy control group compared to the patient group.

Remember, based on the toy examples given in the beginning of this tutorial, it is not possible to infer absolute changes of microbes in a given sample. Balances will not be able to provide this sort of answer, but it can limit the number of possible scenarios. Specifically, one of the five following scenarios could have happened.

  1. The taxa in the y0_{numerator} on average have increased between patient group and the healthy control.

  2. The taxa in the y0_{denominator} on average have decreased between patient group and the healthy control.

  3. A combination of the above occurred

  4. Taxa abundances in both y0_{numerator} and y0_{denominator} both increased, but taxa abundances in y0_{numerator} increased more compared to y0_{denominator}

  5. Taxa abundances in both y0_{numerator} and y0_{denominator} both decreased, but taxa abundances in y0_{denominator} increased more compared to y0_{numerator}

To further narrow down these hypothesis, biological prior knowledge or experimental validation will be required.
